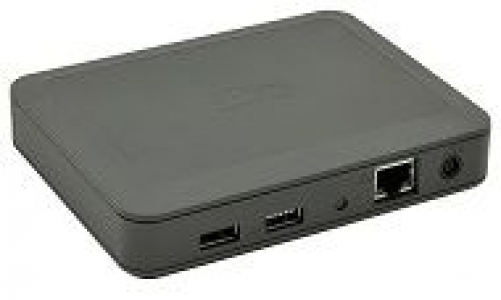

DS-600
Gigabit USB 3.0 High Throughput Device Server
The Silex DS-600 is designed to easily connect and share USB 3.0 and 2.0 devices over a network. Printers, Scanners, Disk Drives, Cameras, Card Readers, or virtually any other USB device can be now be enabled with network capability. It allows flexibility to place the USB device anywhere on the network instead of needing to be attached directly to the computer, and multiple users can access the USB device.
Top Features:
- High Performance 1 GHz CPU
- 10/100/1000Base Ethernet port
- A USB 3.0 SUPERSPEED port supporting USB bus power for devices
- A Hi-Speed USB 2.0 port supporting USB bus power for devices
- High Speed Isochronous USB transfer for streaming applications
- Enterprise Security
- Ideal for Virtual Environments
Product name: DS-600
Wired LAN: 10BASE-T, 100BASE-TX, 1000BASE-T (Auto Recognition)
Device interface: 1 x USB 3.0 SUPERSPEED (Type A) and 1 x USB 2.0 Hi-Speed (type A)
Operating system supported:
Windows 10 (32/64bit), Windows 8/8.1 (32/64bit), Windows 7 (32/64bit), Windows Server 2012R2, Windows Server 2012, Windows Server 2008R2, Windows Server 2008 (32/64bit)
Protocol supported: TCP/IP
Configuration: Setup utility (Device Server Setup), Web browser
Dimensions: W: 130mm x D: 100mm x H: 26.2mm (body only)
Weight: 145g (Without Accessories)
Power supply: AC adapter AC100V 50/60Hz
Maximum power consumption: 4.8W (DC12V 0.4A) not including USB bus power
Regulatory compliance: VCCI Class B / FCC Class B / CE Class B
Maximum number of connections: 15
Click on the contents file below to download the latest documentation for your product.
Unless otherwise noted, the documentation is in PDF format and requires Adobe Acrobat Reader to view.
Download Product Brief
